Ground Fueling Configurator

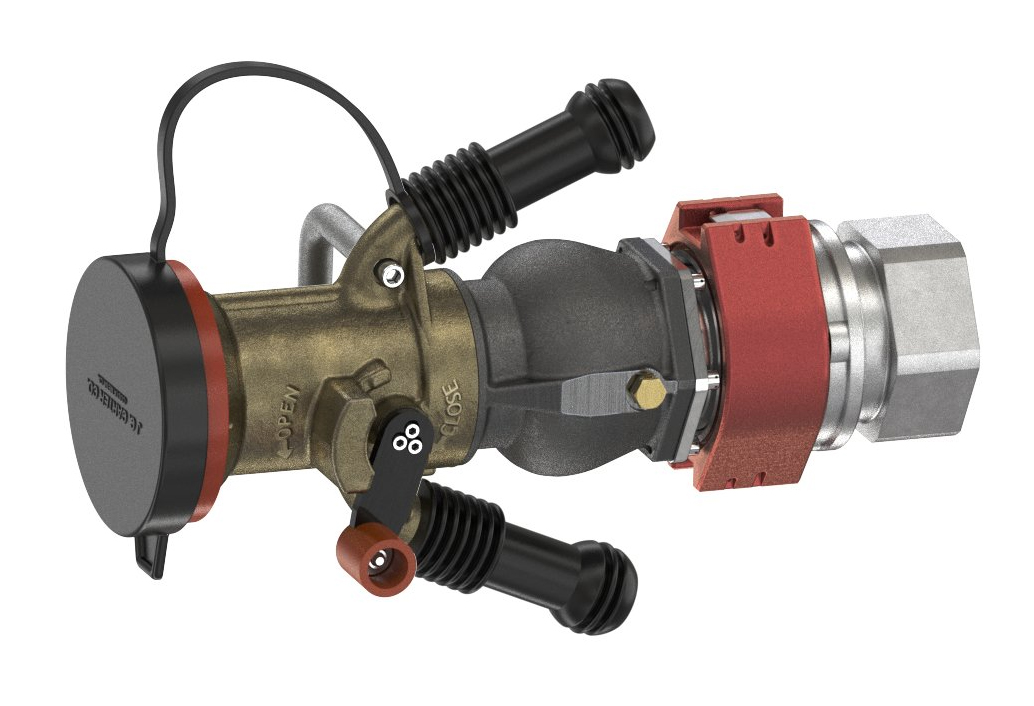

Underwing Refueling Nozzles

Eaton's Carter^® product line of ground fueling equipment includes several underwing refueling nozzle models.

The refueling nozzles for commercial and military aircraft are designed to meet the latest SAE AS5877 requirements and are available with a variety of optional accessories that can be combined to meet refueling operators' needs.

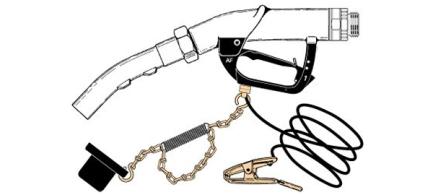

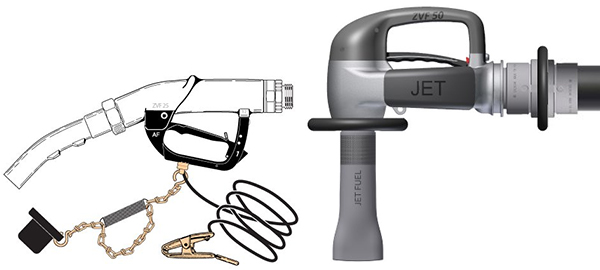

Overwing Refueling Nozzles

Manually operated nozzle for aircraft refuelling

ZVF 25 max. 140 l/min.

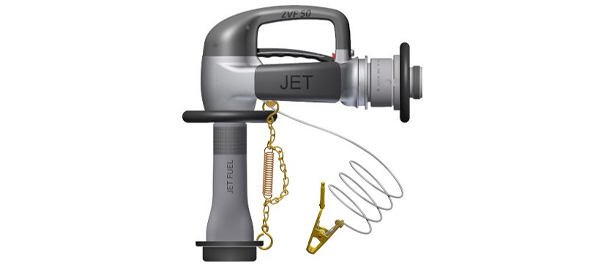

ZVF 50 max. 400 l/min.
Suitable for Avgas und Jet-A1.

Pit Valves

Eaton's Carter^® hydrant pit valves comply with EI 1584, fourth edition.

Remote actuators remove complicated control devices from the pit by moving most pilot valve functions from hydrant valves to fuel servicer vehicle hoses, thus eliminating the need to remove hydrant valves from the pit if pilot actuators require maintenance or replacement.

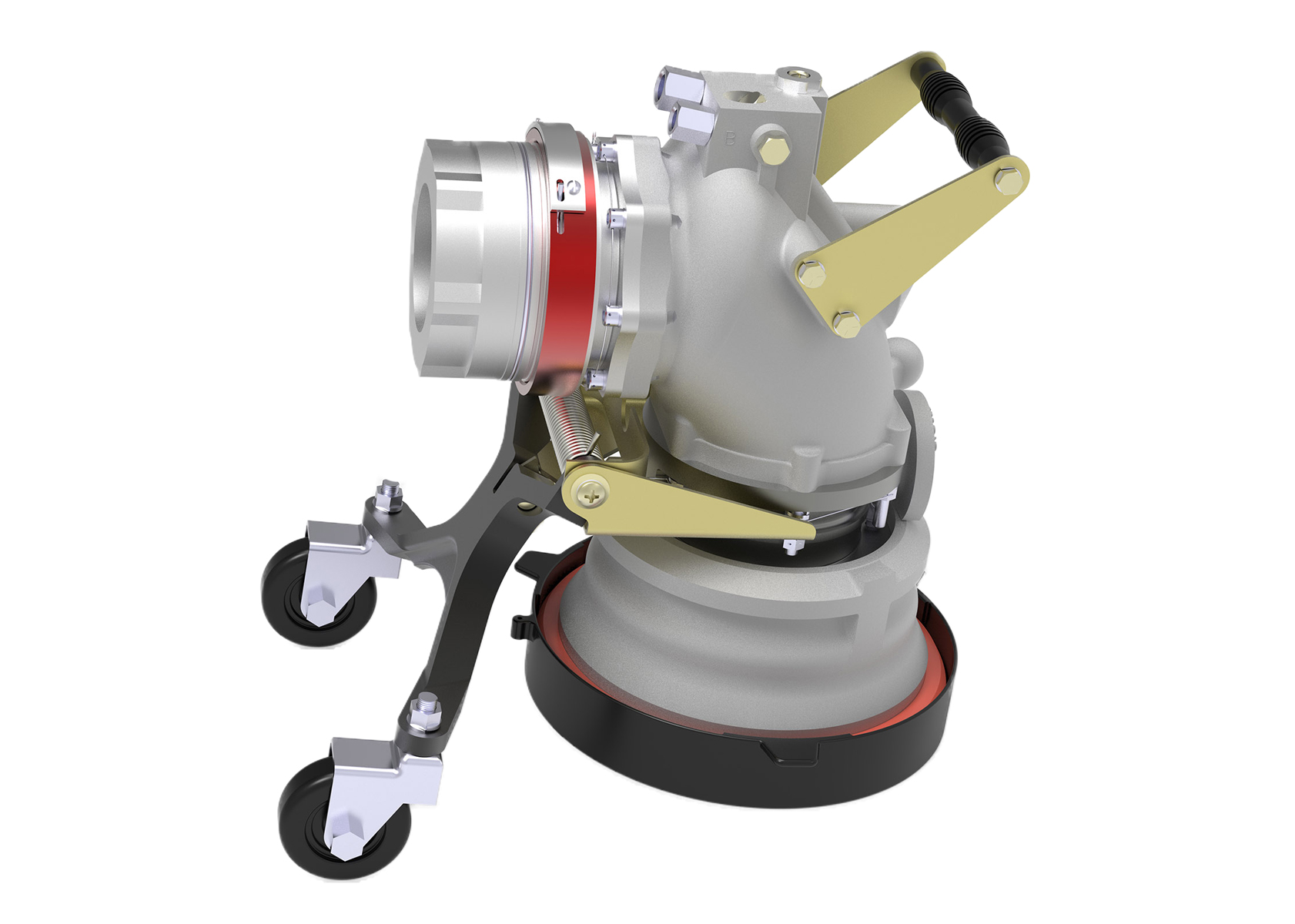

Hydrant Couplers

Eaton's Carter^® product line of ground fueling equipment includes a number of hydrant coupler models.

The hydrant couplers include air, fuel and digitally operated 3-inch models. Couplers are compliant with EI1584, fourth edition, and can be integrated with coupler lift assist devices.

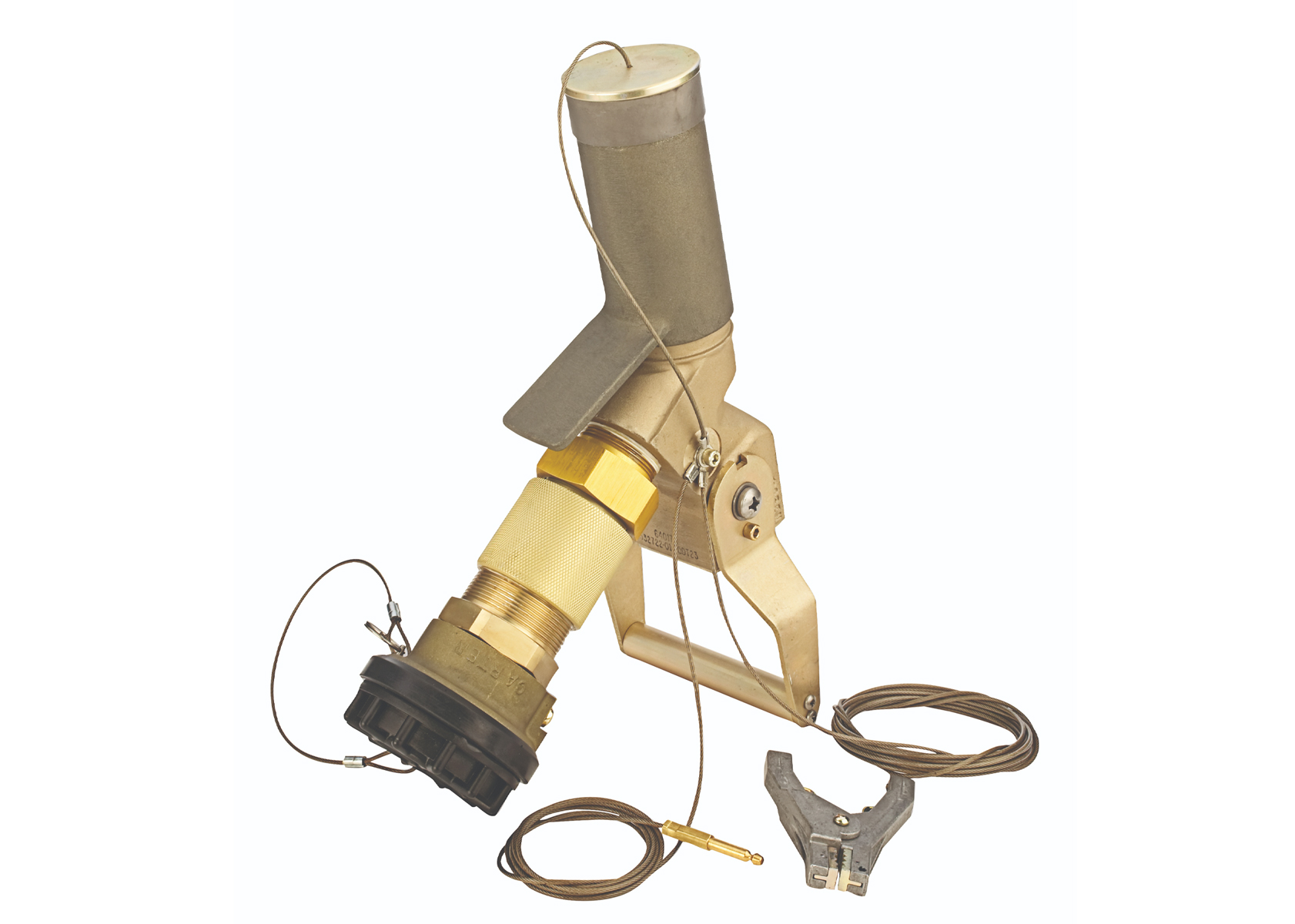

Helicopter Valves

Eaton's Carter^® closed circuit refueling nozzle (Model 64017) is designed to connect to vehicles, helicopters and ground units whose receptacles comply with U.S. Army drawing C13219E0479 or equivalent.

The pressure fueling nozzle (Model 64048) supports helicopter in-flight refueling operations from U.S. naval vessels.

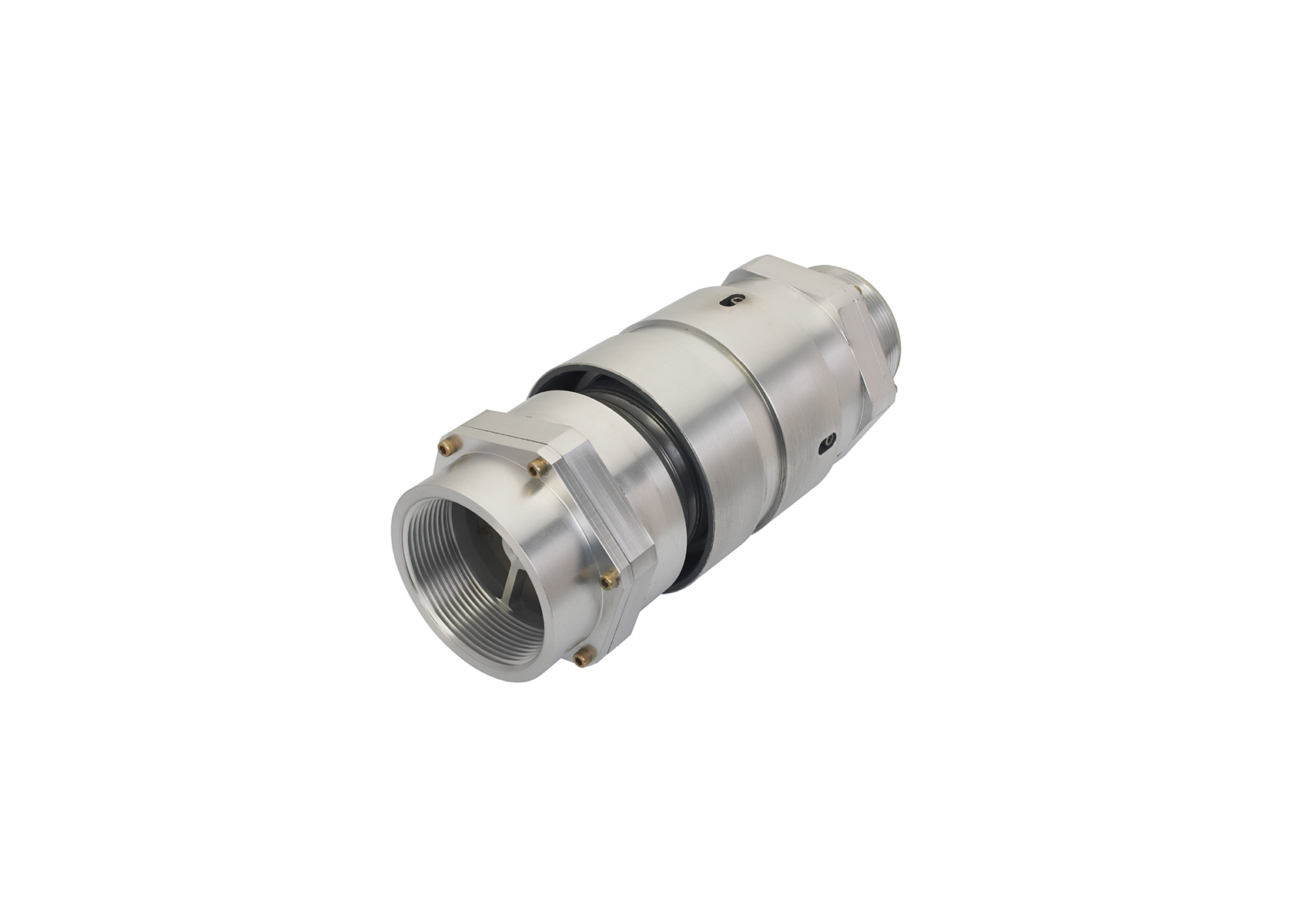

Miscellaneous Components

Our Carter^® product line is the industry standard for reliability and safety in ground fueling equipment.

With a solid reputation for innovation and quality, Eaton is a world leader in the design and manufacture of ground fueling products serving both commercial and military aircraft.
